12 Point Junction Block Red
12 Point Junction Block Red



Alternative Views:
Our Price: $13.95

Quantity in Stock:15

Availability:: Usually Ships in 24 Hours
Product Code: 12PBBR
Qty:


Description

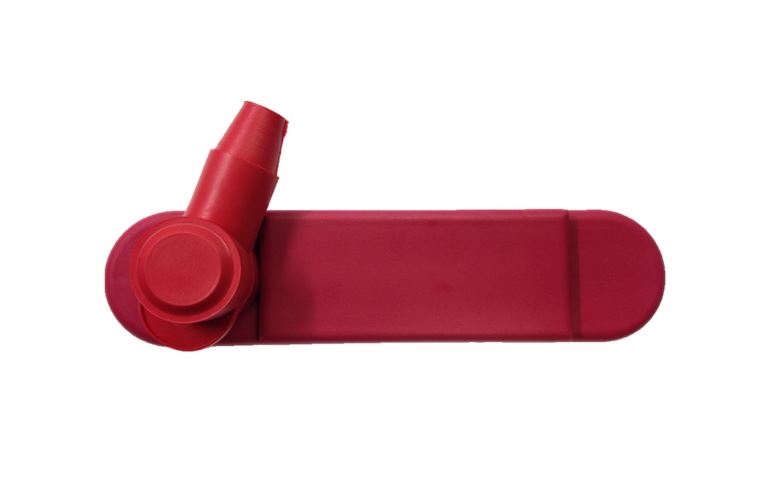

12 point power distribution post. Has an insulated base for mounting. Makes it easy to distribute power to electronics by running one main feed. Positive (red) block has (1) 1/4" stud for power in. Lower conductive nut is factory installed for optimum current flow. 12 power points, #8-32 stainless steel screws, rated for 15 amps continuous each. All hardware is stainless steel. Contact plate is made from nickle plated brass. Mounts with #10 screws. Cover is included for protection against accidental short circuit.
Specifications
    • Input Stud Diameter: 1/4"
    • Screw Size x 12: #8
    • Max Continuous Amperage: 180A total, 15A per connection @ 12VDC
    • Max Voltage: 48V DC
    • Hardware Material: Stainless Steel
    • Bus Strip Material: Nickel Plated Brass
    • Base Material: Glass Filled Nylon
    • Base Size: 5-1/4" L x 1-1/8" W
    • Overall Height: 1.09" (without rubber cover)
    • Mounting Hole Size: #10 screw
    • Mounting Center: 4.66"
