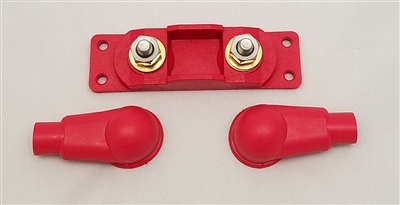

Mega Fuse Holder 250A Max
Alternative Views:
Our Price:
$
16.69
Quantity in Stock:30
Availability::
Usually Ships in 24 Hours
Product Code:
509666-001
Qty:
Description
Technical Specs

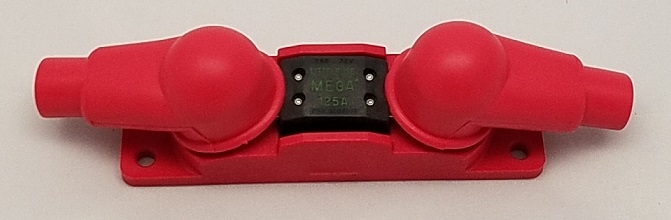

Inline mountable Mega fuse holder. High quality rubber covers to insulate your cable connections handle up to 1 gauge (awg) cable. Fuse not included. Handles up to 250A continuous.
Hardware arrangement when installing:
1. Brass washer
2. Fuse
3. Power cable terminals
4. Brass washer
5. Lock washer
6. Nut
The fuse and power cables should always make direct contact.
Specifications
Base Material: Glass Filled Nylon
Base Color: Red
Mounting Hole Size: 3/16"
Hardware Material: Stainless Steel and Brass.
Stud Size: 5/16"
Stud Length: 5/8"
Dimensions:
Length: 4-1/2"
Width: 1-1/4"
Height: 1-3/8" (not including insulators)
Mounting center: 4"
Insulator length: 2-1/2"
Insulator cable entry diameter: 1/2"
Maximum amperage: 250A continuous @ 12VDC - Fuse Not Included
